Precision Fluid Control Built for Demanding Applications

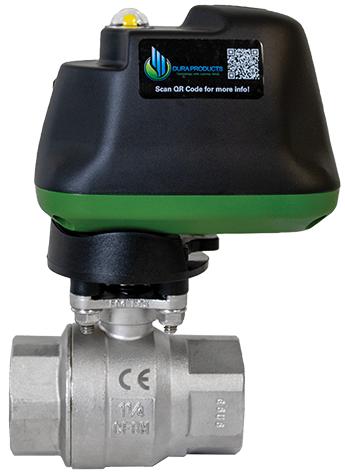

The 1″ Dura Electric Actuated Stainless Steel Ball Valve is engineered for reliable, accurate fluid control in agricultural, industrial, and OEM fluid-handling systems. Built with corrosion-resistant stainless steel and a high-performance electric actuator, this valve delivers fast response, long service life, and consistent operation in harsh environments.
Designed for applications requiring automation, repeatability, and safety, Dura electric ball valves are trusted in chemical transfer, direct injection, batching systems, sprayers, nurse trailers, and industrial process control.
Common Applications
- Chemical transfer systems
- Direct injection and batching systems
- Agricultural sprayers and nurse trailers
- Fertilizer and DEF handling
- Industrial fluid automation
- OEM equipment integration
- Features & Benefits
- Specifications
- Technical Docs & Literature
- Video
Features & Benefits
- Multi-position adapter on actuator: Allows for adapting to different valve configurations.
- Compact size: Experience unparalleled efficiency with our compact design, engineered to fit seamlessly into any setup while maximizing performance.
- Waterproof Actuator Housing
- Provides unrestricted flow, reduced pressure drop, and compatibility with high-volume transfer systems.
- Fast open/close response with consistent actuation for automated control systems.
- Corrosion-Resistant Stainless Steel Construction
Ideal for chemicals, fertilizers, DEF, water, and other aggressive fluids. - Sealed, Weather-Resistant Actuator Housing, built to perform in outdoor, wash-down, and harsh operating conditions.
- Low Power Consumption, efficient electrical draw supports mobile equipment, trailers, and field applications.
- OEM-Ready Design, available to meet OEM specifications with mounting, wiring, and connector options.
Size: 1″ Full Port
Voltage: 12 Volt DC
Connection: 1″ Female NPT
Open/Closed Indicator: Yes
On/Off Response Time: 0.8 Second
IP68 Waterproof: Yes
Wiring: On/Off 3 Wire
Connector: DT 4 Pin with loose wire pigtail
Maximum Pressure: 600 PSI
Storage Temp: -32°F to 158°F (-35°C to 70°C)
Actuator Materials: Glass-filled Nylon, polycarbonate, Viton® & Silicone seals
Valve Materials: CF8M SS Body, 316 SS Ball and Stem, PTFE seats and body seal, Viton® and PTFE stem seals
Dimensions: 5.24″ l X 3.19″ w X 8.6″ h
| Product # | Description |
|---|---|
| DPEV-1SS | 1” Dura Full Port Stainless Steel Electric Valve, 12 VDC, 0.8 Sec, ON/OFF |
| DPEV-1A | Actuator Only, 1” series 12 VDC, 0.8 Sec ON/OFF, 4 Pin DT |
