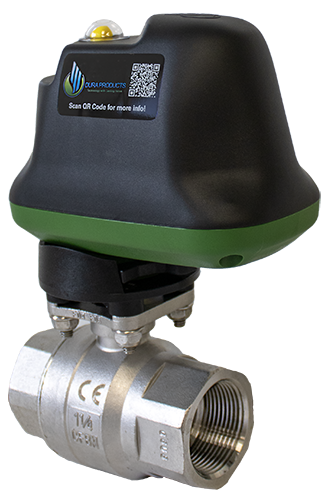

1″ Electric Anhydrous Replacement Actuator or Complete Valve
- Features & Benefits
- Specifications
- Technical Docs & Literature
- Video
Features & Benefits
- Multi-position adapter on actuator: Allows for adapting to different valve configurations.
- Compact size: Experience unparalleled efficiency with our compact design, engineered to fit seamlessly into any setup while maximizing performance.
- Fast shut-off: Ensures that application stops exactly where needed, reducing over-application (which wastes product and risks crop damage).
- Waterproof Actuator Housing
- Plug and play to Raven® system harness
Size: 1″
Voltage: 12 Volt DC
Connection: 1″ Female NPT
Open/Closed Indicator: Yes
On/Off Response Time: 0.8 Second
IP68 Waterproof: Yes
Wiring: On/Off 3 Wire motor control with 1 wire open position confirmation
(compatible with Raven® harness and controls)
Connector: 4 Pin Conxall®
Maximum Pressure: 600 PSI
Storage Temp: 32° to 158° F (35° C to 70° C)
Actuator Materials: Glass-filled Nylon, polycarbonate, Viton® & Silicone seals
Valve Materials: CF8M SS Body, 316 SS Ball and Stem, PTFE seats and body seal, EPDM and
PTFE stem seals
Dimensions: 5.24″ l X 3.19″ w X 8.6″ h
| Product # | Description | Raven® Equivalents | KZ Valve® Equivalents |
|---|---|---|---|
| DPEV-1A-RAVENNH3 | Raven® 1” NH3 Replacement Actuator Kit, Raven®/Conxall® Connector | RV063-0173-20 | KR-ONOFF |
| DPEV-1NH3 | Dura 12V 1” Ball Valve for NH3, Stainless, On/Off, 1” FPT Ports, Raven®/Conxall® Connector | RV117-0171-158, RV063-0172-978, RV063-0173-876 | S8F33-1AE9S-C01 |
Raven® is a registered trademark of CNH Industrial.
Conxall® is a registered trademark of HEICO Corporation.
KZ Valve® is a registered trademark of IDEX Corporation.
Dura Products is not affiliated with or endorsed by these companies.
