1″ Dura Electric Valve OEM Replacement Actuator or Complete Valve
- Features & Benefits
- Specifications
- Technical Docs & Literature
- Video
Features & Benefits
- Direct Replacement: For OEM EV actuator or complete valve. Effortlessly replace failed electric valve actuator by dropping in the replacement and plugging it in. Adapter bracket fits directly to the valve and connector matches up. *Note that the electric valve is always installed in line with the valve ports, even though the factory actuator may be perpendicular to the valve.
Size: 1″
Voltage: 12 Volt DC
Connection: M100 Flanges
Open/Closed Indicator: Yes
On/Off Response Time: 0.8 Second
IP68 Waterproof: Yes
Wiring: On/Off 3 Wire
Connector: 4 Pin Deutsch
Maximum Pressure: 150 PSI
Storage Temp: 32° to 158° F (35° C to 70° C)
Acutator Materials: Glass-filled Nylon, polycarbonate, Viton® & Silicone seals
Dimensions: 5.371″ l X 3.199″ w X 4.374″ h
| Product # | Description | OEM Part Number/s | Machine Model Numbers |
|---|---|---|---|

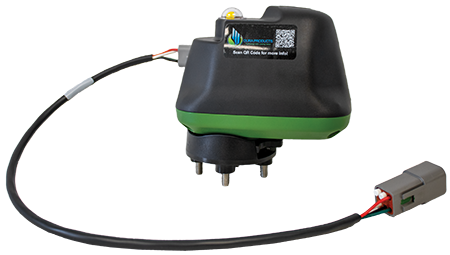

| DPEV-1AAGO | Actuator Dura EV1 W/KZ Valve® Mount & AGCO® Compatible Harness DT4 Plug to DT6 Receptacle | AG121929, 586673D1, AG121882, AG121883 | ROGATOR RG900, RG1100, RG1300 |

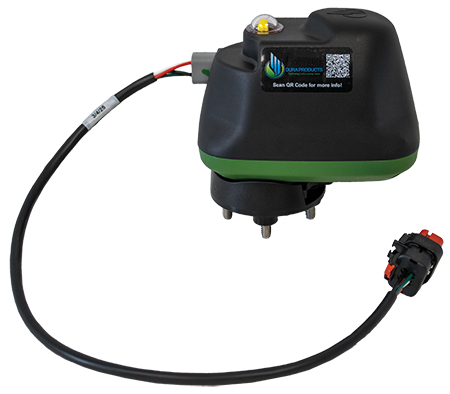

| DPEV-1AJD-A | Actuator Dura EV1 W/KZ Valve® Mount & John Deere® Compatible Harness DT4 Plug to Ampseal 16 Plug | AKK59162 | R4030, R4038, R4044, R4045 |
| DPEV-1AJD-M | Actuator Dura EV1 W/KZ Valve® Mount & John Deere® Compatible Harness DT4 Plug to Metripack 150 Tower | AKK22536 | R4023 |
| DPEV-1AHAGIE | Actuator Dura EV1 W/KZ Valve® Mount & Hagie® Compatible Harness DT4 Plug to DT4 Receptacle | C2F-60B-M-S9, 696256 | STS10, STS12, STS14, STS16 |
| DPEV-100HAGIE | Actuated Valve Dura EV1 W/Hagie® Compatible Harness DT4 Plug to DT4 Receptacle | 696676, 696196 | DTS10 |
AGCO® is a registered trademark of AGCO Corporation. John Deere® and Hagie® are registered
trademarks of Deere & Company. KZ Valve® is a registered trademark of IDEX Corporation.
Dura Products is not affiliated with or endorsed by these companies.
