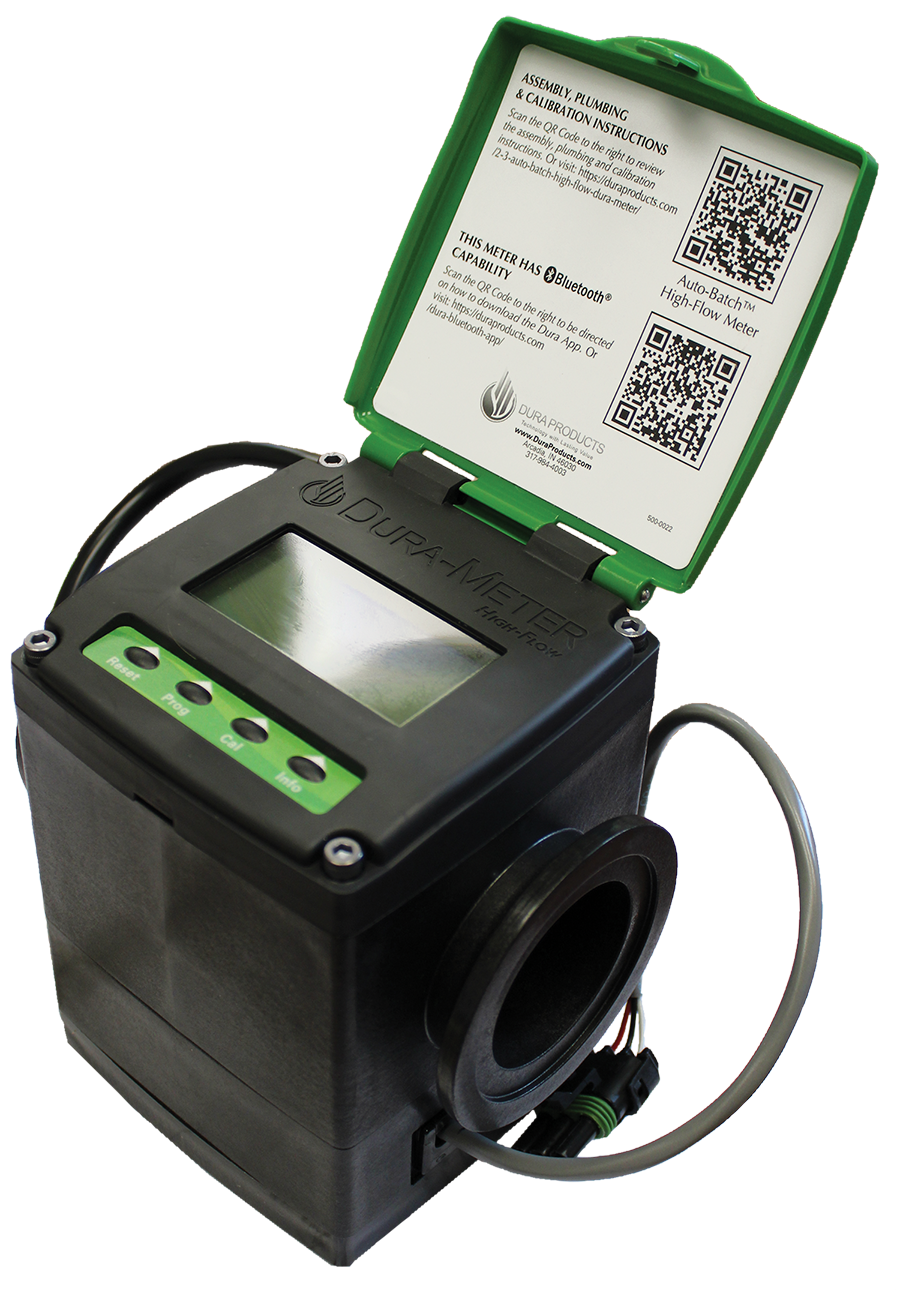

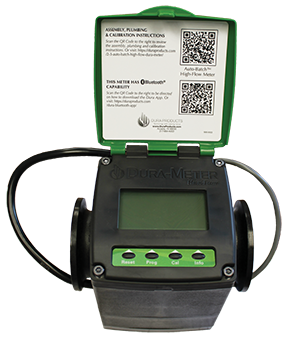

The Dura Auto-Batch™ High-Flow Meter system is an automated device for transferring fluids. First, enter the amount wanted, turn on the pump, and then press Start. Concurrently, the meter opens a valve to send the fluid and then closes it when the amount is reached. System requires Dura’s specially tuned relief valve kit to function. At this time, the product can be ordered as a complete system that includes the meter, valve and relief valve.
Features & Benefits
- Field serviceable
- 100% moisture-sealed circuitry
- Ability to save up to five manual calibrations
- Controls carrier flow using a 12-volt DC electric ball valve
- Easily select manual or automatic operation
- Once finished, the meter returns to last volume amount dispensed for easy repeatable
batching - As can be seen on the screen, a message will appear when the batch is completed
- Optional relief valve plumbing kit for use with electric valve
- Banjo® EVX® 2” or 3” Valves available for tank bypass system
- Dura 1″ Electric Valves available for tank bypass system
- Faceplate can be rotated in 90 degree increments
- Meter has the ability to calibrate which allows for industry minimum straight line before/after meter
- Features & Benefits
- Specifications
- Technical Docs & Literature
- Video
Features & Benefits
- Intuitive menu-driven backlit display
- Impact resistant Lexan™ faceplate
- Accuracy +/- 0.5% with manual field calibration
- Full port with industry standard manifold M220 or M300 flanges
- Works with non-conductive material
- Counts flow in either direction
- Includes a 2-year Warranty & Maintenance Program
Operating Temp: 32° F to 140° F
Flow Rate: 1″ = 10 to 100 or 2″ = 40 to 300 or 3″ = 80 to 700 GPM
Size / Connection: 1″ M100 Flange or 2″ M220 Flange or 3″ M300 Flange
Meter Accuracy: + / – 0.5%
Backlit Display: Yes
Meter Type / Style: Paddlewheel
Body Materials: GF Polypropylene; EPDM or Viton® Seals
| Product number | Description |
|---|---|
| DPAB-HFM2KITV | 2″ Auto-Batch™ High-Flow Meter System with Viton® seals |
| DPAB-HFM2KITE | 2″ Auto-Batch™ High-Flow Meter System with EPDM seals |
| DPAB-HFM3KITV | 3″ Auto-Batch™ High-Flow Meter System with Viton® seals |
| DPAB-HFM3KITE | 3″ Auto-Batch™ High-Flow Meter System with EPDM seals |
| product number | Description |
|---|---|
| DPAB-HFM1E | 1″ Auto-Batch™ High-Flow Meter Only with EPDM seals |
| DPAB-HFM1V | 1″ Auto-Batch™ High-Flow Meter Only with Viton® seals |
| DPAB-HFM2E | 2″ Auto-Batch™ High-Flow Meter Only with EPDM seals |
| DPAB-HFM2V | 2″ Auto-Batch™ High-Flow Meter Only with Viton® seals |
| DPAB-HFM3E | 3″ Auto-Batch™ High-Flow Meter Only with EPDM seals |
| DPAB-HFM3V | 3″ Auto-Batch™ High-Flow Meter Only with Viton® seals |
| product number | Description | Kit Contains |
|---|---|---|
| DPAB-HFM2PRV | 2″ Relief Valve Plumbing Kit | Custom pressure relief valve, all hose clamps, gaskets, reduce couplings & tees |
| DPAB-HFM3PRV | 3″ Relief Valve Plumbing Kit | Custom pressure relief valve, all hose clamps, gaskets, reduce couplings & tees |
