2″ & 3″ High-Flow Meter and 2″ & 3″ Auto-Batch™ High-Flow Meter

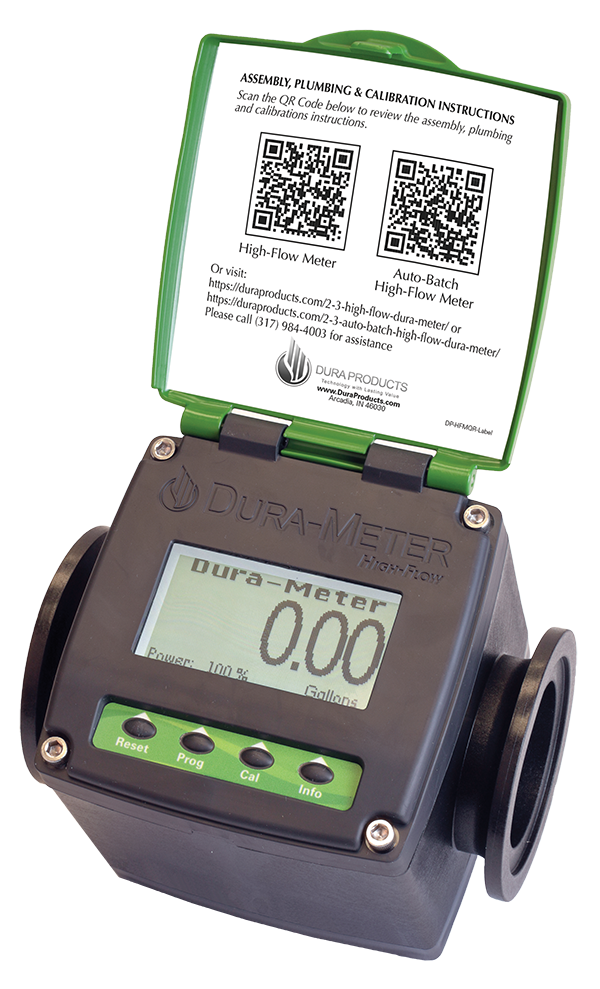

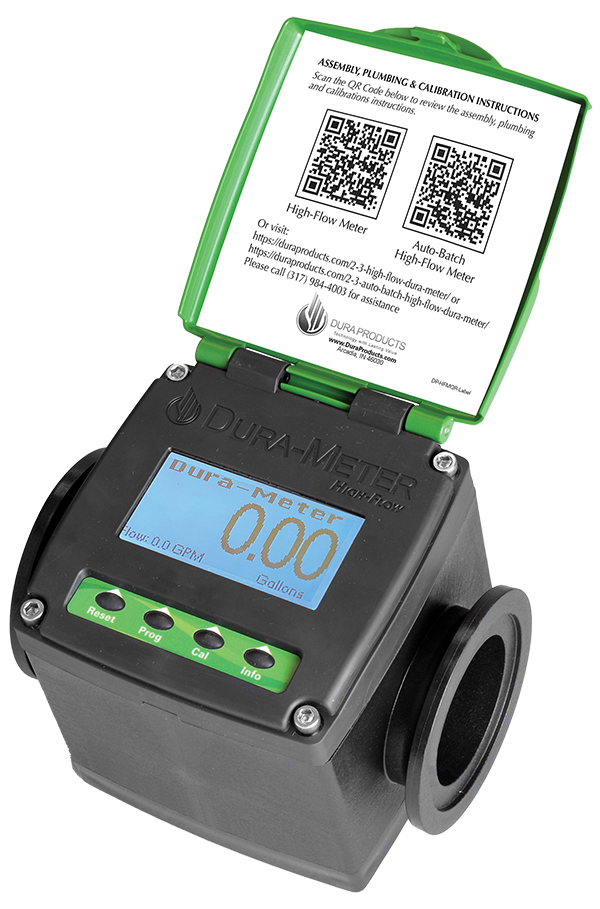

2″ & 3″ High-Flow Dura-Meter™

    • Intuitive menu-driven backlit display
    • Impact resistant Lexan™ faceplate
    • Accuracy +/- 0.5% with manual field calibration
    • Full port with industry standard manifold M220 or M300 flanges
    • Works with non-conductive materials
    • Includes a 2-year Warranty & Maintenance Program


Special Features for Auto-Batch™ High-Flow Meter

    • Field serviceable
    • 100% moisture-sealed circuitry
    • Ability to save up to five manual calibrations
    • Controls carrier flow using a 12-volt DC electric ball valve
    • Easily select manual or automatic operation
    • Returns to last volume amount dispensed for easy repeatable
      batching
    • Displays message when batch is completed
    • Optional relief valve plumbing kit for use with electric valve
    • Banjo® EVX® 2” or 3” Valves available for tank bypass system
    • Faceplate can be rotated in 90 degree increments
    • Ability to calibrate allows for industry minimum straight line before/after meter

PRODUCT#
DP-HFM2E EPDM DP-HFM2V Viton® DP-HFM2S Silicone
DP-HFM3E EPDM DP-HFM3V Viton® DP-HFM3S Silicone







PRODUCT#
DPAB-HFM2E EPDM DPAB-HFM2V Viton®
DABP-HFM3E EPDM DPAB-HFM3V Viton®







Available in EPDM, Viton® or Silicone
Must specify EPDM (Product# and E), Viton® (Product # and V) or Silicone (Product # and S) when ordering.



Find a

 Distributor

  • The 2" & 3" High-Flow Dura-Meter™ is made of impact resistant Lexan™ faceplate, so it holds up to the toughest treatment. It can also can withstand impacts common in the agricultural market and beyond.  Made with 100% moisture-sealed circuitry, the meter is impervious to water intrusion.
  • The 2" & 3" High-Flow meter can be calibrated to achieve + / - 0.5% accuracy and significantly reduce Straight Inlet / Outlet requirements.  The (2) 9V batteries provide power that allows you to stay in the field longer. It is over-molded with Santoprene and filled with gel, so the face-plate has improved shock resistance.
  • The 2" & 3" High-Flow Dura-Meter™ uses an industry leading menu driven backlit display, so it is the easiest of all chemical meters on the market to use in all light conditions.  Also, it is plumbed both for in-line and 90 degree applications, adding to its versatility. In addition to the rich features, a 2 Year Maintenance Program and warranty come standard. It is available with EPDM Silicone, and Viton® seals.



















TECHNICAL DOCUMENTS & VIDEO
Quick Assembly Instructions
Auto-Batch™ High-Flow Meter Sales Sheet

3" High-Flow Dura-Meter™  Assembly Video
